Repair Procedures: Replacement: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the Rear Pillar Trim.
(Refer to Interior Trim - "REAR PILLAR TRIM ")

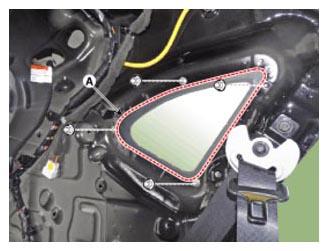

- Loosen the quarter fixed glass (A) mounting nuts.
Tightening Torque:
3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb-ft)

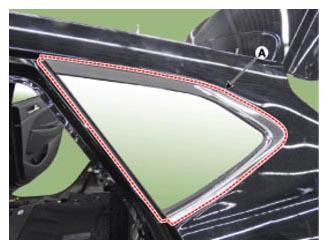

- Cut out the quarter fixed glass sealant using the utility knife.NOTE:
- Do not scrape down to the painted surface of the body as bonding strength may get diminished on damaged paint.
Information
- Remove the rubber dam and fasteners from the body.
- Mask off surrounding surfaces before painting.
- Remove the quarter fixed glass (A).
