Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear floor carpet.

    (Refer to Body - "FLOOR CARPET ")

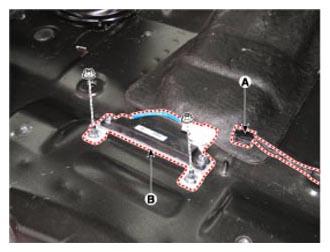

  3. Remove the interior 2 antenna (B) after loosening the mounting nuts and disconnecting the connector (A).
    G13033307Courtesy of HYUNDAI MOTOR AMERICA
