Repair Procedures: Removal
- Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learning with the GDS tool.
(Refer to 4WD Control System - "ADJUSTMENT ")
- Disconnect the battery negative cable from the battery
- Remove the Luggage Side Trim.
(Refer to Body - "LUGGAGE SIDE TRIM ")

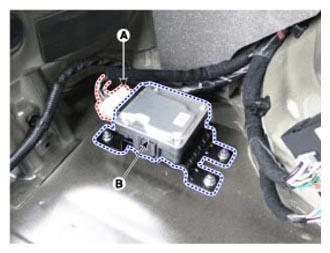

- Disconnect the 4WD ECU connector (A).
- Loosen the nuts and then remove the 4WD ECU (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
