Components Location (2)

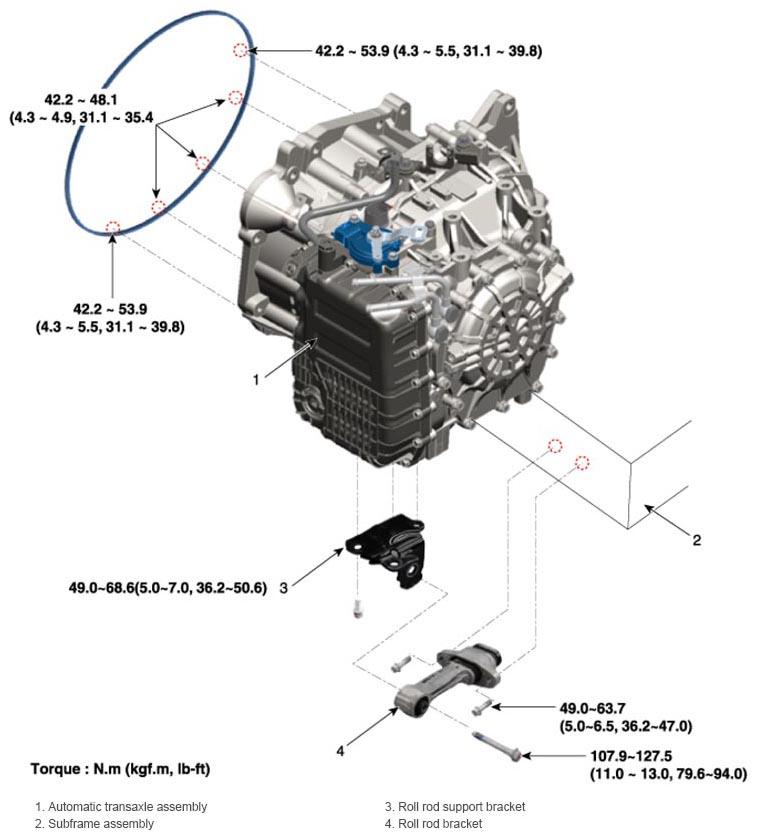

Fig 1: Automatic Transaxle Components With Torque Specification (2 Of 2)
G13021122Courtesy of HYUNDAI MOTOR AMERICA
