Components Location (1)

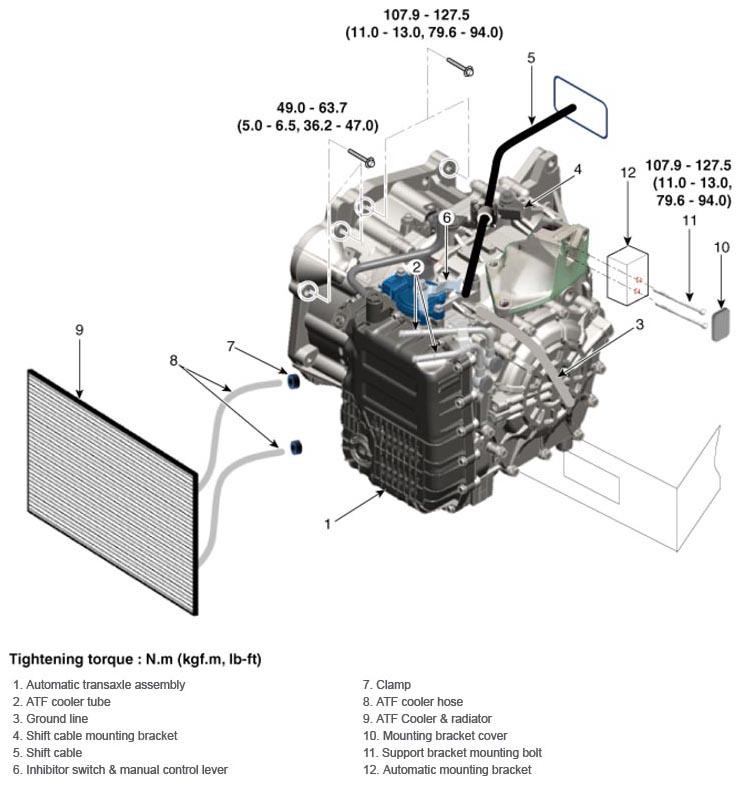

Fig 1: Automatic Transaxle Components With Torque Specification (1 Of 2)
G13021121Courtesy of HYUNDAI MOTOR AMERICA
