Connector Assembly Status Test

  1. Remove the connector (A) and reinstall it.
    G13016940Courtesy of HYUNDAI MOTOR AMERICA

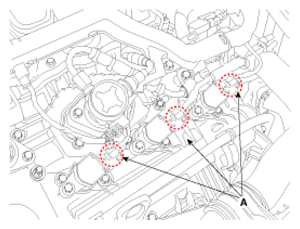

    G13016941Courtesy of HYUNDAI MOTOR AMERICA

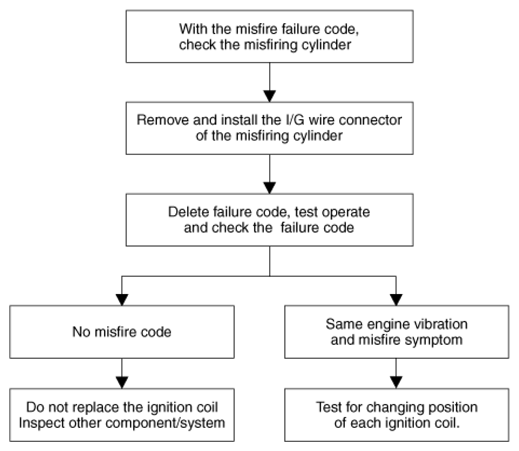

    G13016942Courtesy of HYUNDAI MOTOR AMERICA
