Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper and lower shrouds.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

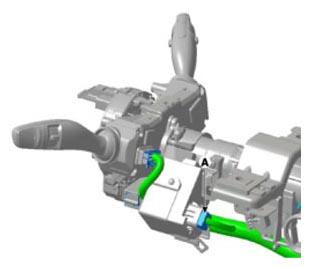

  4. Disconnect the Electronic Steering Column Lock Connector (A).
    G13033449Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the Electronic Steering Column Lock.

    (Refer to MOTOR DRIVEN POWER STEERING SYSTEM - "Steering Column and Shaft")

G13033450Courtesy of HYUNDAI MOTOR AMERICA
