Rear Power Window Motor
- Disconnect the negative (-) battery terminal.
- Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")
- Disconnect the motor connector from the motor.
- Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly.
If the operation is abnormal, replace the motor.

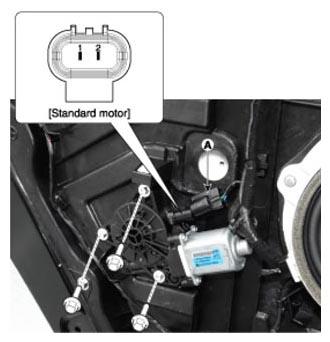

[Standard Window Motor]
