Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.

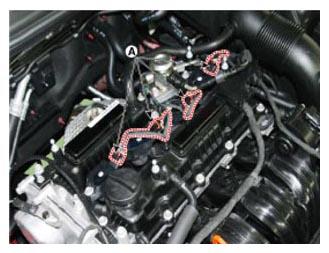

  3. Disconnect the ignition coil connector (A).
    G13034205Courtesy of HYUNDAI MOTOR AMERICA

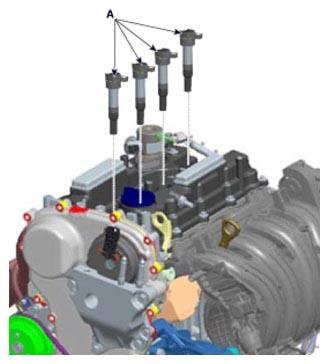

  4. Remove the ignition coil (A).
    G13034206Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G13034207Courtesy of HYUNDAI MOTOR AMERICA
