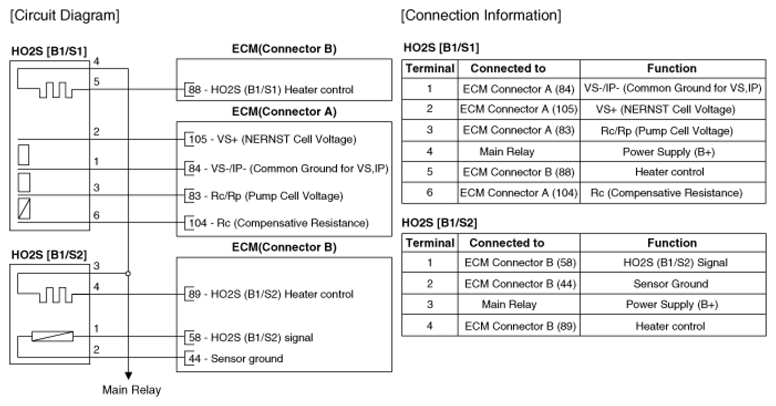

Home >> Hyundai >> 2021 >> Tucson Limited, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Heated Oxygen Sensor (HO2S) >> Schematic Diagrams >> Circuit Diagram >> Notes
