Components And Components Location: Components

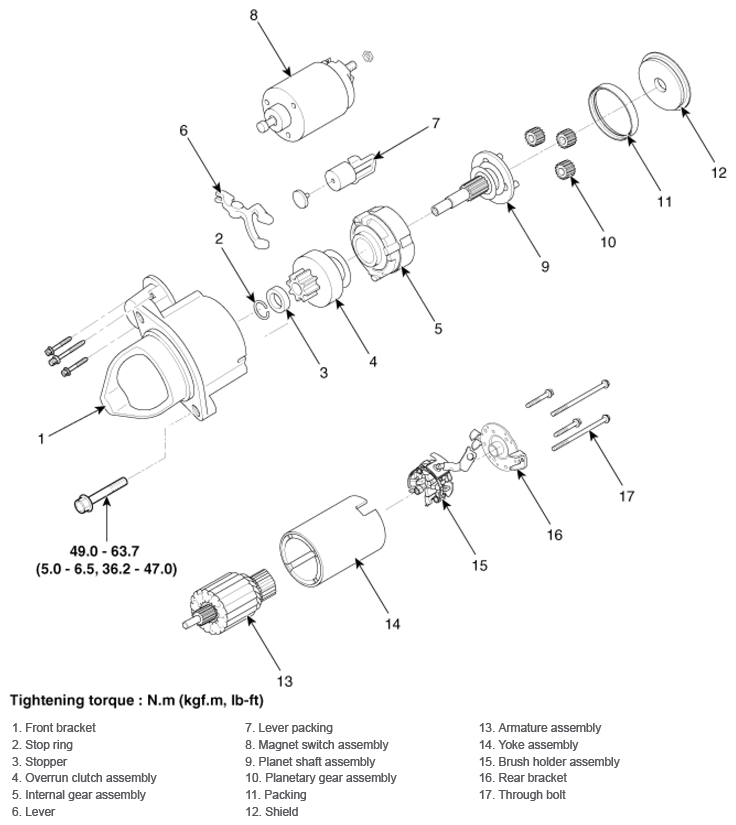

Fig 1: Starter Components Exploded View With Torque Specification

G13034216

Courtesy of HYUNDAI MOTOR AMERICA
