[Component Inspection]
- Check the spark plug for any damage on its thread and insulator.
If there is damage, replace the spark plug.

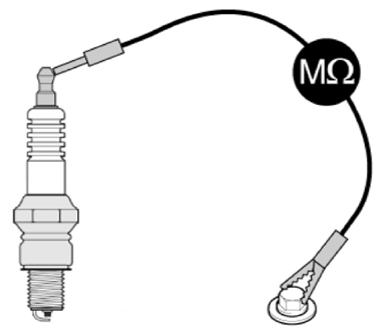

- Check the electrode. Measure the insulation resistance with an ohmmeter.
If the resistance is less than the specified value, adjust the electrode gap.
Specification: 10 MΩ or more

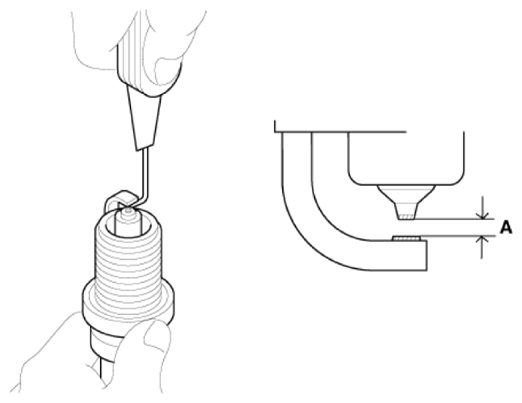

- Check the spark plug electrode gap.
If the gap is greater than the maximum, replace the spark plug.
Spark plug electrode gap: 1.0 - 1.1 mm
NOTE:
- If adjusting the gap of a new spark plug, bend only the base of the ground electrode. Do not touch the tip.
