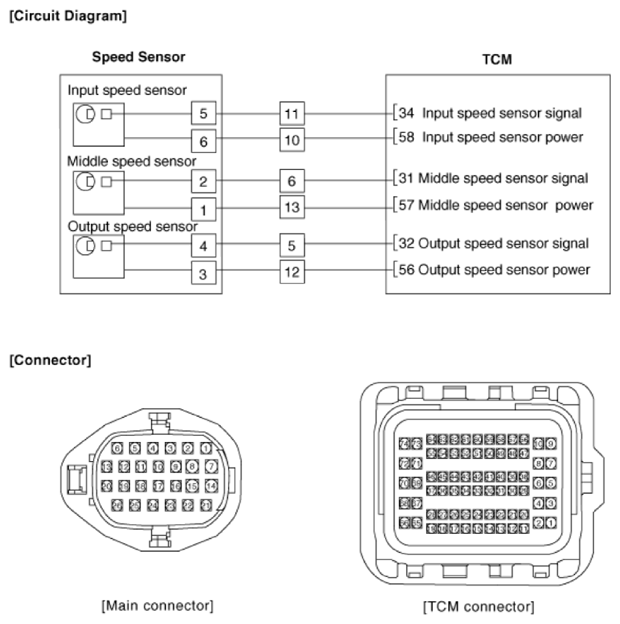

Home >> Hyundai >> 2021 >> Sonata SEL Plus >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 1.6L (Except HEV) >> Speed Sensor >> Schematic Diagrams >> Circuit Diagram
