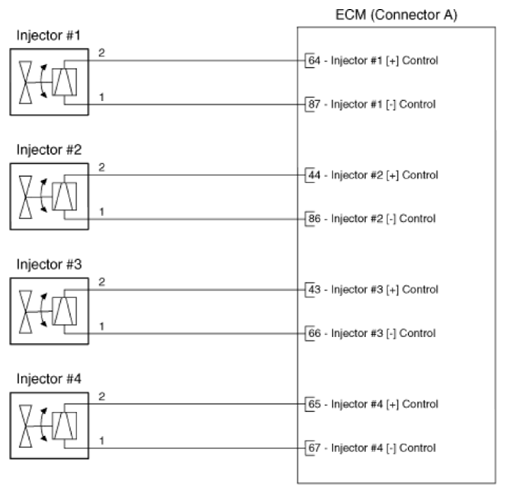

Home >> Hyundai >> 2021 >> Sonata SEL Plus >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L (Except HEV) >> Injector >> Schematic Diagrams >> Circuit Diagram >> Notes
