Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the intercooler inlet pipe.

    (Refer to Engine Mechanical System - "INTERCOOLER ")

  4. Disconnect the electric waste gate actuator (EWGA) connector.

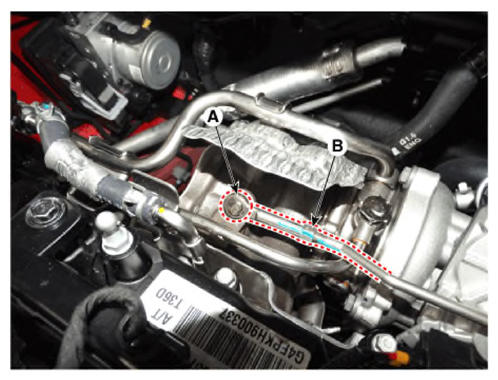

  5. Remove the C-ring (A), and then removing the shaft link assembly (B).
    G14625780Courtesy of HYUNDAI MOTOR AMERICA

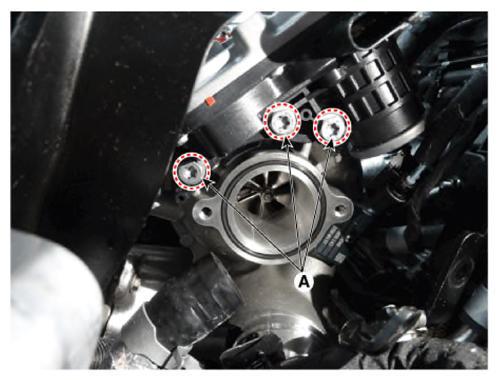

  6. Remove the EWGA after loosening the mounting bolt (A).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14625781Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
