Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the intercooler outlet hose.

    (Refer to Engine Mechanical System - "INTERCOOLER ")

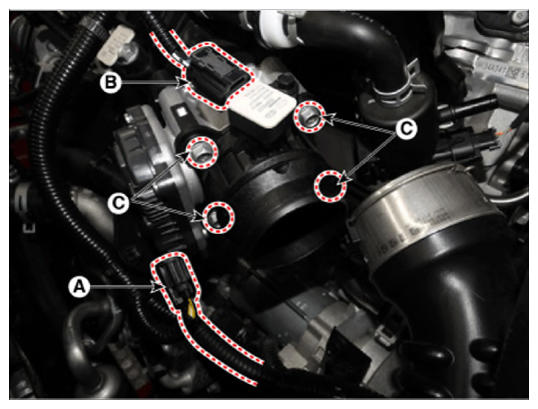

  3. Disconnect the ETC Module Connector (A).
  4. Disconnect the MAPS connector (B).
  5. Remove the ETC module after loosening the mounting bolt (C).
G14625673Courtesy of HYUNDAI MOTOR AMERICA
