Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

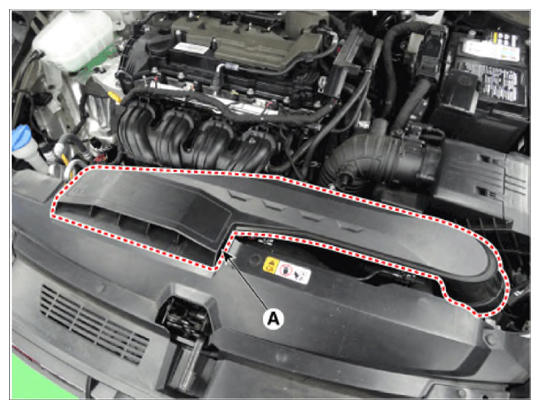

Remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

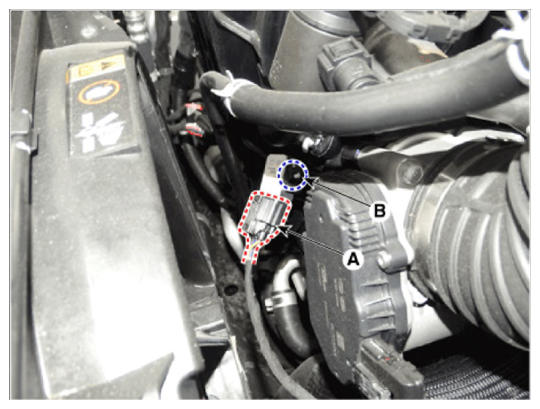

Disconnect the sensor connector (A) and then loosening the mounting bolt (B).
Tightening Torque:

8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
