Repair Procedures: Removal

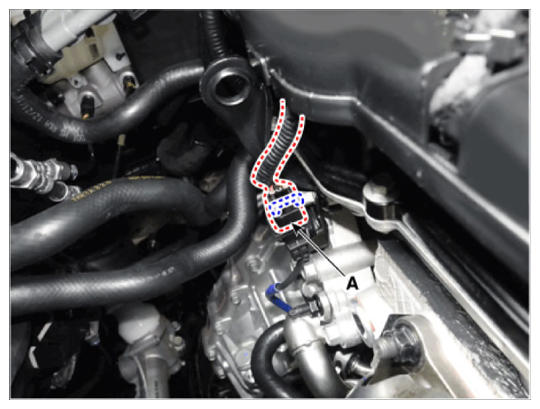

Disconnect the crankshaft position sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

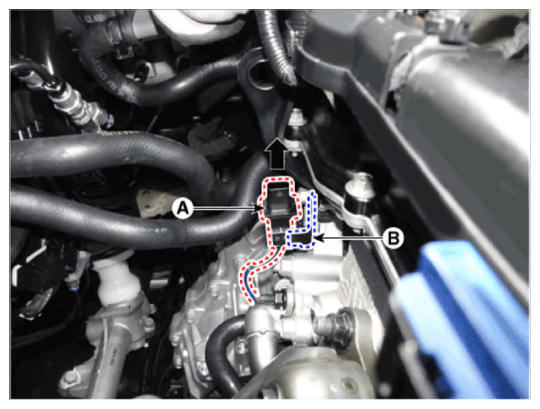

Remove the connector (A) from the bracket (B).

Courtesy of HYUNDAI MOTOR AMERICA

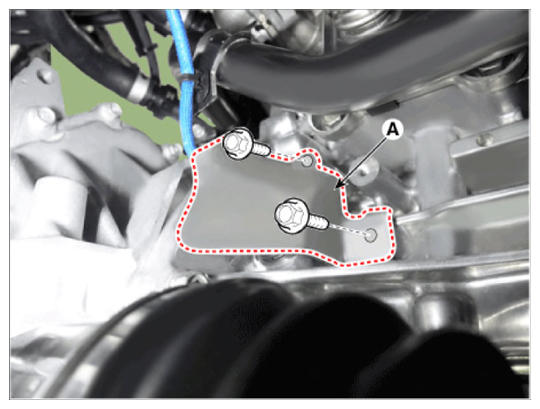

Remove the cover (A) after loosening the mounting bolt.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

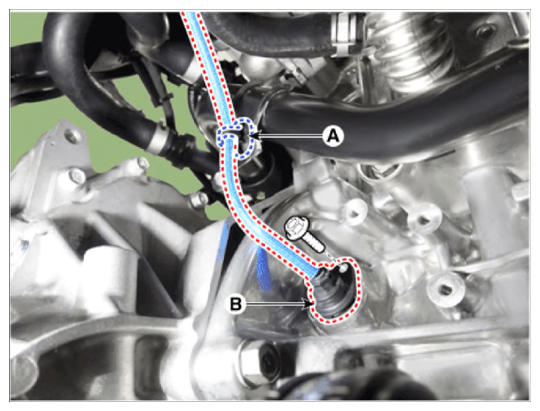

Disconnect the wiring fixing clip (A) and then removing the sensor (B) after loosening the mounting bolt.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
