Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
  2. Remove the air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

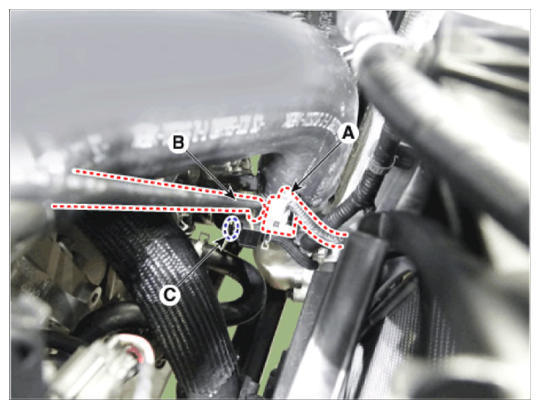

  3. Disconnect the RCV control solenoid valve connector (A), RCV hoses (B), and then loosening the installing bolt (C).
    G14632989Courtesy of HYUNDAI MOTOR AMERICA

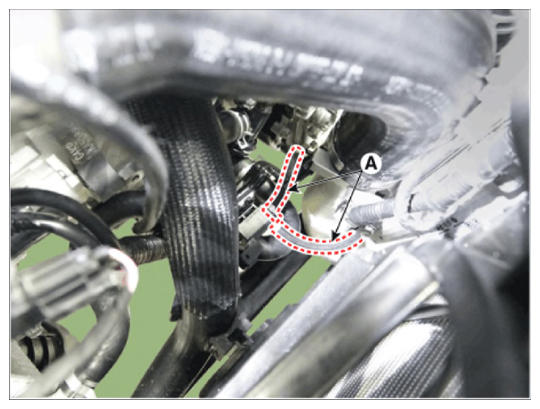

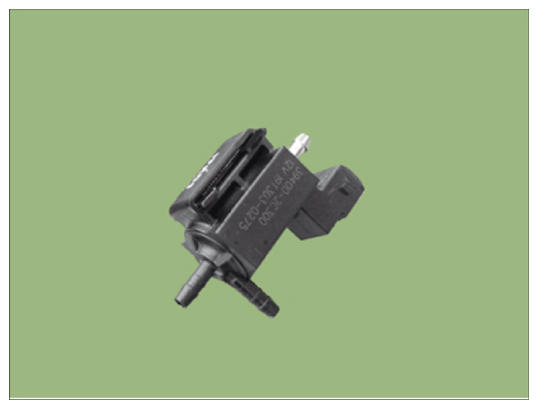

  4. Disconnect the RCV hose (A), and remove the RCV control solenoid valve.
G14632990Courtesy of HYUNDAI MOTOR AMERICA
G14632991Courtesy of HYUNDAI MOTOR AMERICA
