Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

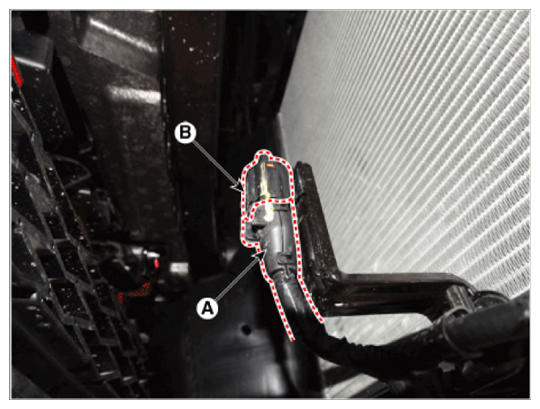

  3. Disconnect the ATS connector (A) and then remove the ATS (B).
G14632872Courtesy of HYUNDAI MOTOR AMERICA
