Component Function: Function
PSM

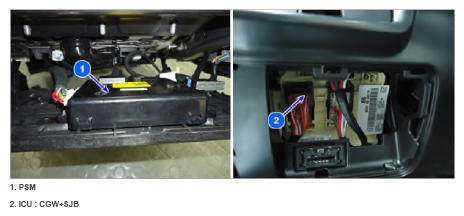

PSM* controls the position adjustment of Driver Seat by the manual seat switch or IMS*. And it is connected to ICU* to form B-CAN network of the vehicle.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| PSM* | "DRIVER IMS CONTROL MODULE" | Power Seat Module | SD877-2 |
| ICU* | 'ICU JUNCTION BLOCK" | [CGW+SJB] Integrated Central control Unit | |
| CGW | 'ICU JUNCTION BLOCK_IPS CONTROL MODULE" | Central Gateway | |
| SJB | 'ICU JUNCTION BLOCK" | Smart Junction Block | |
| IMS* | Integrated Memory System | ||
