Repair Procedures: Installation

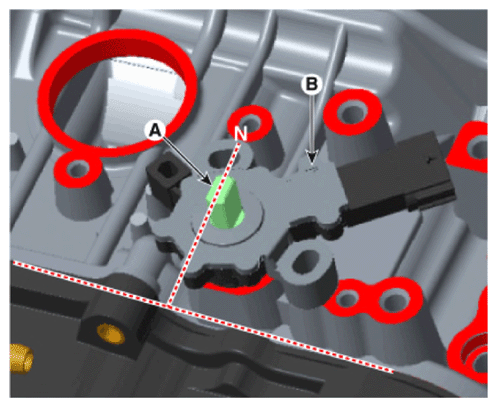

- Check that the shaft (A) is in the "N" position.
- Install the position sensor (B).

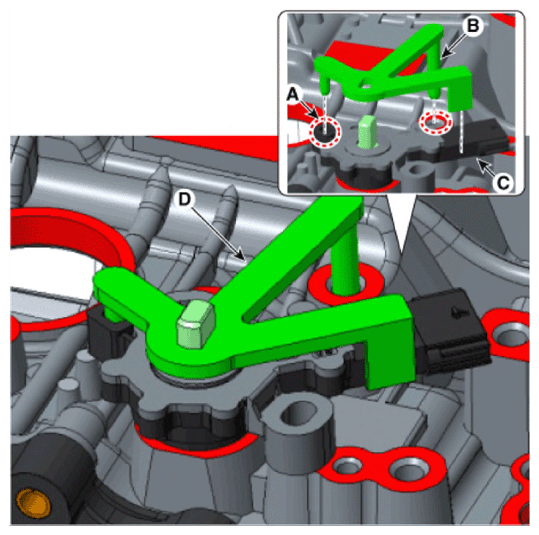

- Install the position sensor "N" fixing SST (No.:09459 - 4G200) (D) in the sensor (A), case pin (B) and anti-rotation guide (C).
- Install the bolts (A) in the position sensor.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 28.9 - 33.9 lb.ft)

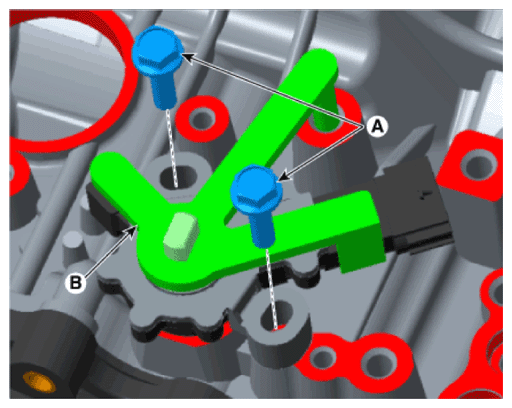

- Remove the position sensor "N" fixing SST (No.:09459 - 4G200) (B).

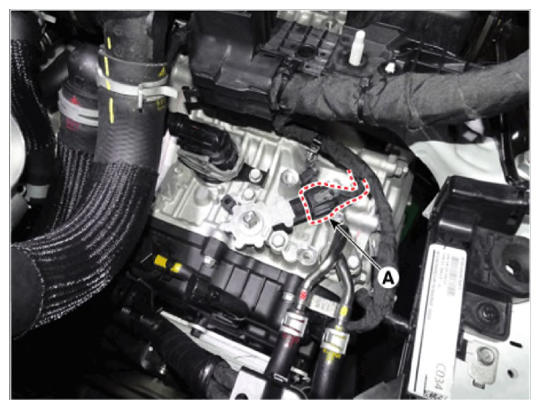

- Connect the position sensor connector (A).

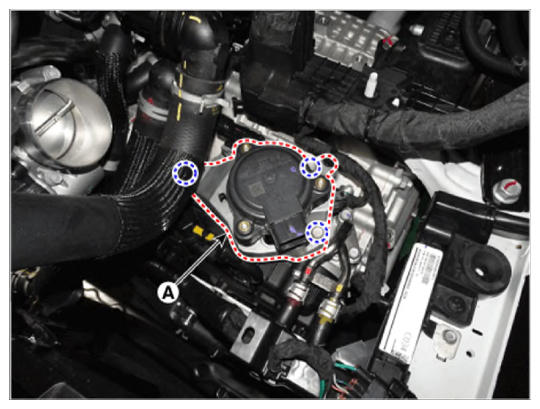

- Install the electronic shift actuator (A).

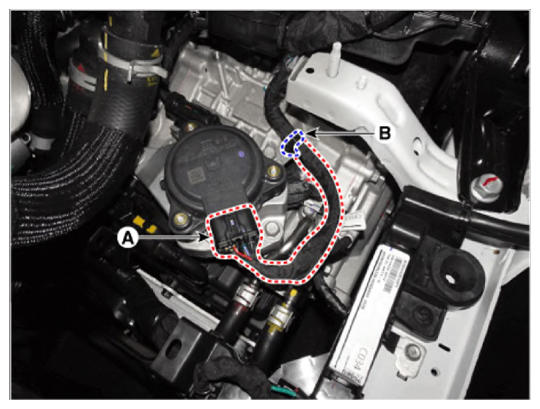

- Connect the electronic shift actuator connector (A) and then installing the wiring clip (B).
- Install the air duct and the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Connect the negative (-) battery cable.
- Check that operating surely at each range of the position sensor corresponding to each position of electric shift button.
