Description And Operation: Description

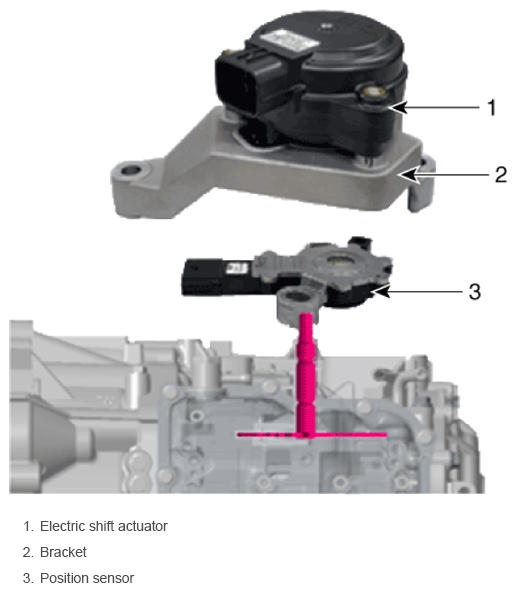

Output position signal (P, R, N, D) by the actuator operation to the controller (SBW Control Unit_SCU).

G14534699Courtesy of HYUNDAI MOTOR AMERICA
