Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.

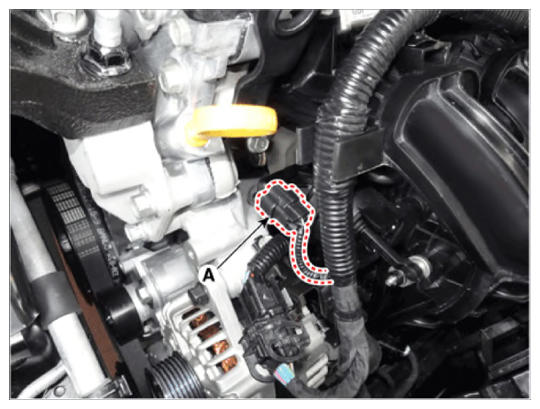

Disconnect the VIS valve connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

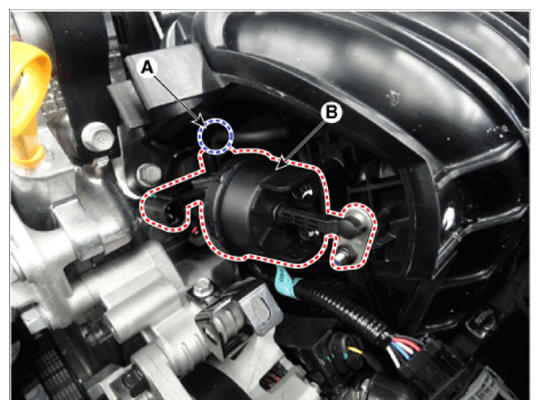

Disconnect the hose (A) and then remove the VIS valve (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
