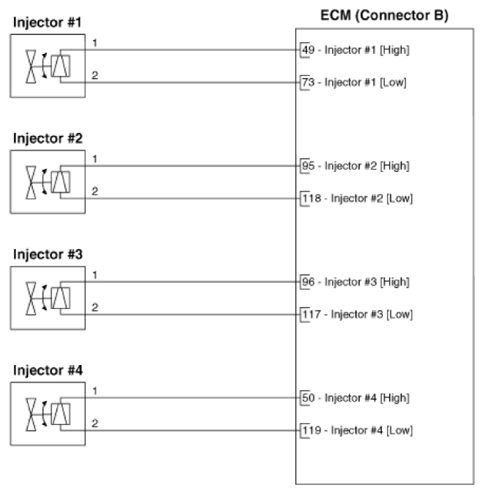

Home >> Hyundai >> 2021 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.5L (Except HEV) >> Injector >> Schematic Diagrams >> Circuit Diagram >> GDI Injector
