Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

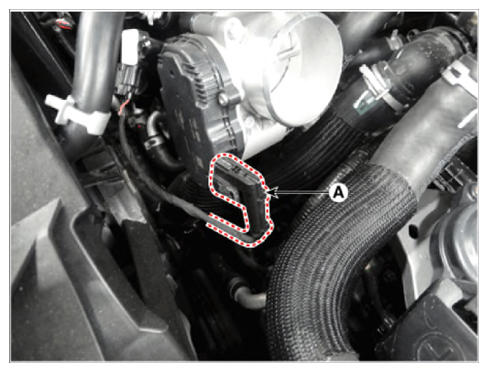

  3. Disconnect the ETC module connector (A).
    G14534173Courtesy of HYUNDAI MOTOR AMERICA

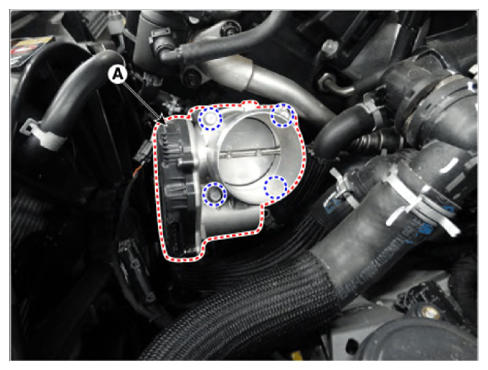

  4. Remove the ETC Module (A) after loosening the mounting bolt.

    Electronic throttle body Installation bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14534174Courtesy of HYUNDAI MOTOR AMERICA
