E-CVVT Motor

NOTE:
  • Remove after 30 minutes of switching "OFF" the ignition to drain out the oil inside the E-CVVT motor plug.
  1. Remove the timing chain.

    (Refer to Engine Mechanical System - "TIMING CHAIN ")

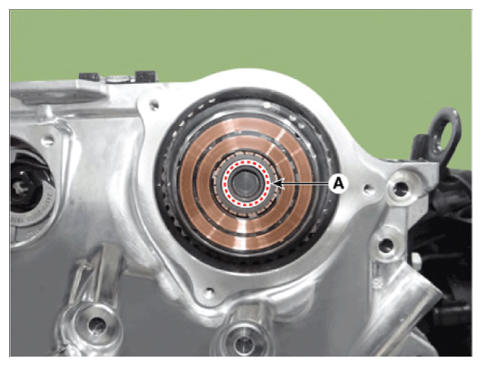

  2. Remove the center of the E-CVVT motor plug (A) by breaking it.
    G14534305Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not tilt the front of engine (timing chain cover side) downward as residual oil may flow out during E-CVVT motor plug removal.
    • If oil flows out during E-CVVT motor plug removal, wipe off immediately and block the motor shaft inlet with a clean towel.

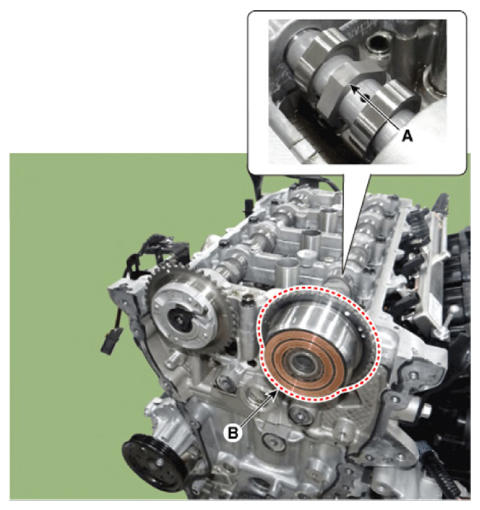

  3. Fix the camshaft part (A) using the wrench, and then remove the E-CVVT motor (B) after loosening the mounting bolt.
    G14534306Courtesy of HYUNDAI MOTOR AMERICA
