Repair Procedures: Installation

  1. To install, reverse the removal procedure.
    NOTE:
    • Check the cleanliness of the pressure sensor before installation.
    • Check the pressure sensor O-ring (A).
      G16112817Courtesy of HYUNDAI MOTOR AMERICA

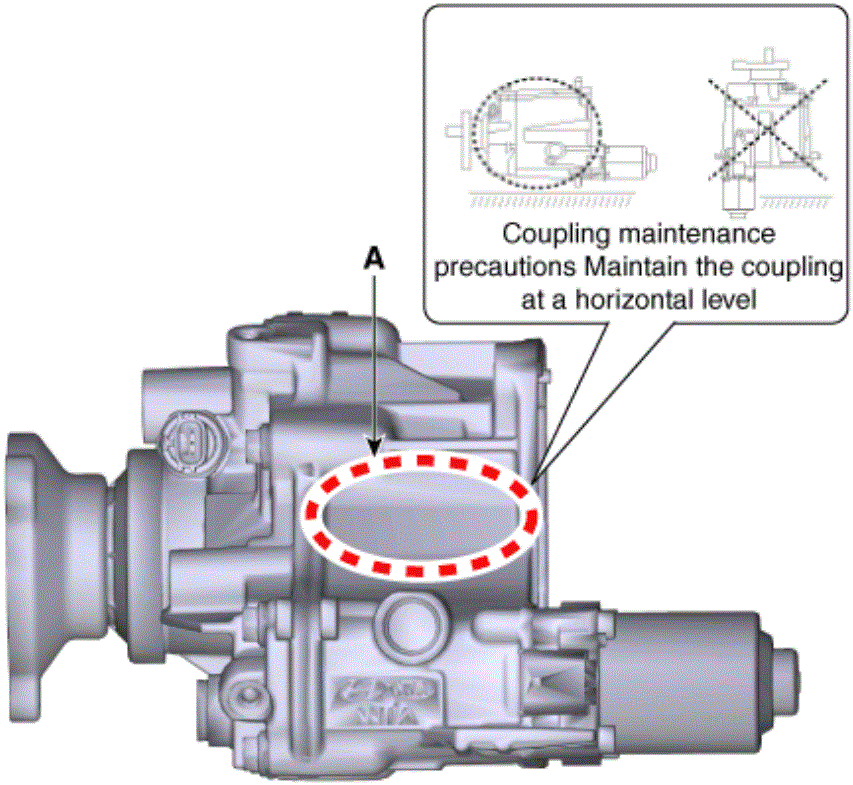

    • Keep it level with the sticker (A) on the top of the coupling.
    G16112818Courtesy of HYUNDAI MOTOR AMERICA
