Repair Procedures: Removal

Remove the floor console upper cover.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

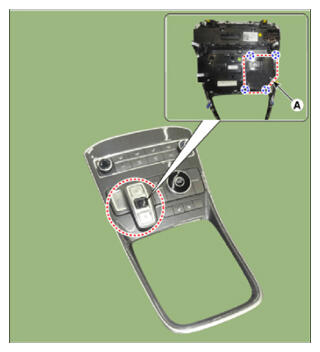

Loosen the screw and then removing the electric shift button module (A).

Courtesy of HYUNDAI MOTOR AMERICA

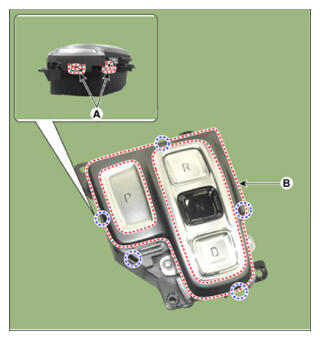

Release the lock (A) using a tool and then removing the upper cover (B).

Courtesy of HYUNDAI MOTOR AMERICA

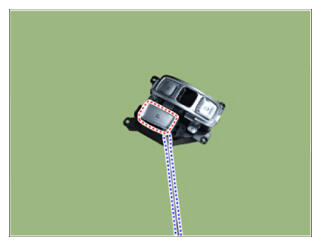

Using a (-) driver and then removing the P position button.

Courtesy of HYUNDAI MOTOR AMERICA

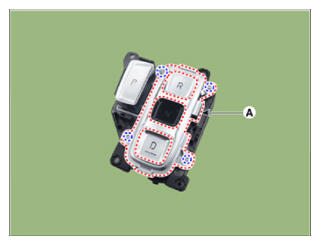

Loosen the screw and then removing the bezel (A).

Courtesy of HYUNDAI MOTOR AMERICA

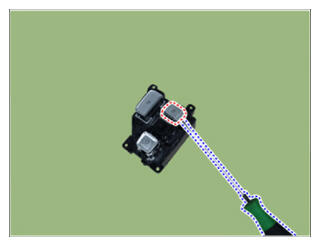

Using a (-) driver and then removing the each position button.
[R Button]

Courtesy of HYUNDAI MOTOR AMERICA

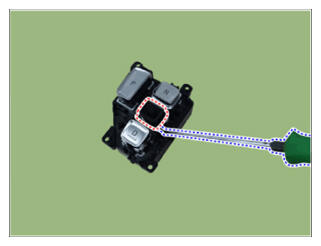

[N Button]

Courtesy of HYUNDAI MOTOR AMERICA

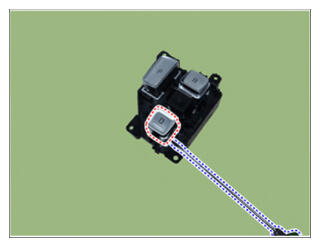

[D Button]

Courtesy of HYUNDAI MOTOR AMERICA
