Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Lift the vehicle.
  3. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

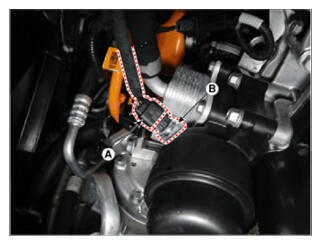

  4. Remove the oil pressure & oil temperature sensor after disconnect the oil pressure & oil temperature sensor connector (A).

    Tightening Torque:

    35 - 38.5 N.m (3.6 - 4.0 kgf.m, 26.0 - 28.9 lb.ft)

    G16112213Courtesy of HYUNDAI MOTOR AMERICA
