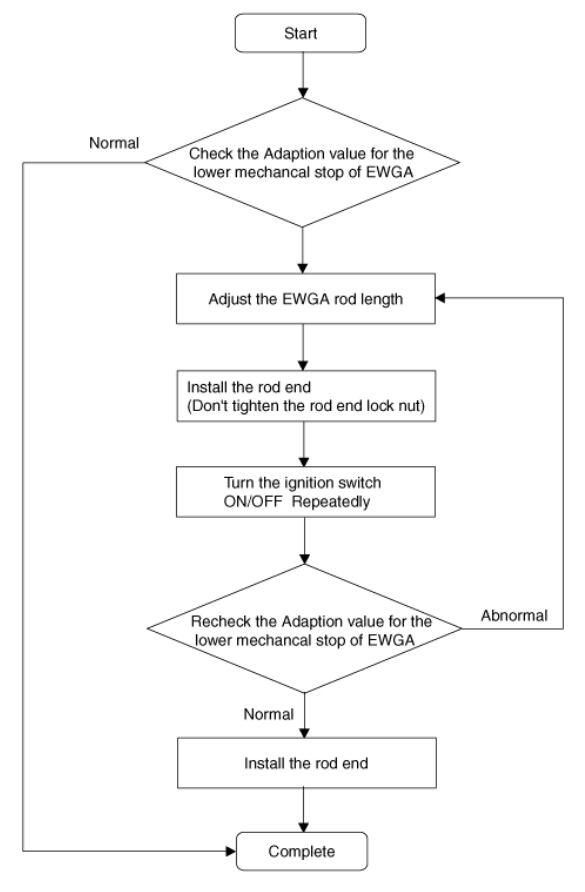

[Rod Adjustment Procedure Flowchart]

G16112239Courtesy of HYUNDAI MOTOR AMERICA
  1. Check that the waste gate turbo charger is cool enough to work.

    Information

    • It can help cooling down fast to use a electric fan.
    • The cooling part (A) and the wind direction (B) are as follows.
      G16112240Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn the ignition switch OFF.
  3. Connect the diagnostic tool to data link connector (DLC).
  4. Turn the ignition switch ON.
    CAUTION:
    • Do not start the engine.
  5. Select VIN or Vehicle on the initial screen.
  6. Enter "Engine Control" menu after selecting vehicle information (Vehicle model, Model year, Engine type) or entering the VIN number.
  7. Select "Current Data".
  8. Without starting the engine, cycle the ignition ON for 5 seconds then ignition OFF for 5 seconds then check the "Adoption value for the low mechanical stop of EWGA" on the diagnostic tool.

    Repeat this step until the amount of the adoption value change compared to previous cycle is below 0.05V.

    NOTE:
    • Do not start the engine. This is a crucial step to read the correct adoption value.
  9. Check that "Adoption value for the lower mechanical stop of EWGA" is within the specified voltage value.

    Voltage:  3.5 - 3.7V

  10. If the voltage value measured is not within the specified voltage value, adjust the EWGA rod length. But, if no, no further procedure is required.

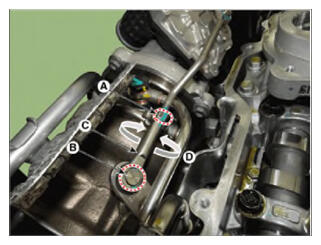

    1. Loosen the rod end lock nut (A) and remove the C-ring (B).
    2. Adjust the rod end part (C) by rotating it clockwise (D) or counterclockwise (E) to satisfy the specification.
      Adoption value for the lower mechanical stop of EWGA (V) Adjustment direction of rod end Rod length variation (After adjustment)
      > 3.7 counterclockwise Longer
      < 3.5 clockwise Shorter

      Information

      Turning angle Changing level of the adoption value (V)
      0.5 turn (180°) About 0.1
      1 turn (360°) About 0.2
      G16112241Courtesy of HYUNDAI MOTOR AMERICA

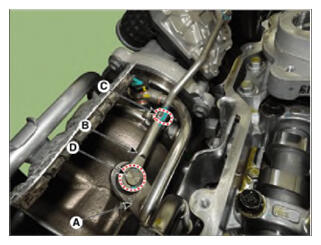

  11. Install the rod end (B) to the turbo charger lever (A) temporarily. Don't tighten the rod end lock nut (C) and C-ring (D).
    G16112242Courtesy of HYUNDAI MOTOR AMERICA
  12. Check "Adoption value for the lower mechanical stop of EWGA" after selecting "Current Data" menu.

    Turn the ignition switch ON/OFF repeatedly until the changing value of "Adoption value for the lower mechanical stop of EWGA" is within 0.05V.

    NOTE:
    • Turn the ignition switch ON/OFF. But hold 5 seconds at each IG ON or OFF state.
  13. If the voltage value measured is not within the specified voltage value, repeat 9-12 procedures until the voltage value is within the specified voltage value.
  14. Check that "Adoption value for the lower mechanical stop of EWGA" is within the specified voltage value.
  15. If it is within the specified voltage value, install the rod end to the turbo charger lever.

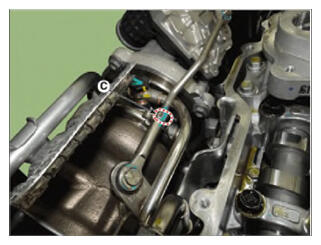

    1. Install the rod end (B) to the turbo charger lever (A).
    2. Tighten the rod end lock nut (C).
    3. Install the C-ring (E).
      NOTE:
      • Be careful not to remove the washer (D).
      G16112243Courtesy of HYUNDAI MOTOR AMERICA
      G16112244Courtesy of HYUNDAI MOTOR AMERICA
