Repair Procedures: Adjustment

  1. Turn the ignition switch OFF.
  2. Connect the diagnostic tool to Data Link Connector (DLC).
  3. Turn the ignition switch ON.
  4. Select "Vehicle, Model Year, Engine, System".
  5. Select "CVVD Intake Adoption".

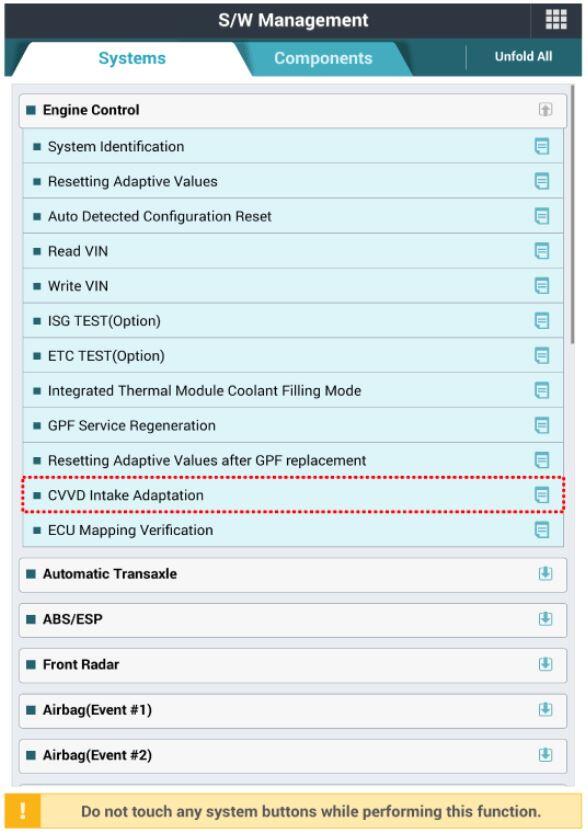

    G16112262Courtesy of HYUNDAI MOTOR AMERICA
  6. Perform the "CVVD Learning" refer to the diagnostic tool.
    G16112263Courtesy of HYUNDAI MOTOR AMERICA

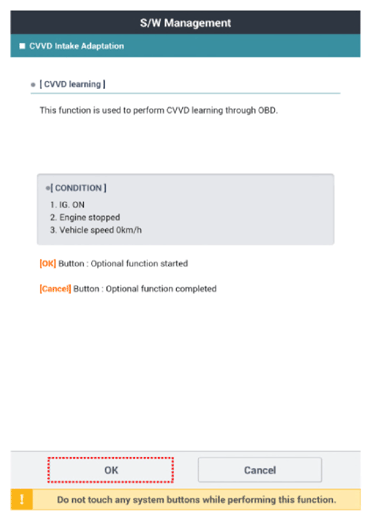

    G16112264Courtesy of HYUNDAI MOTOR AMERICA
