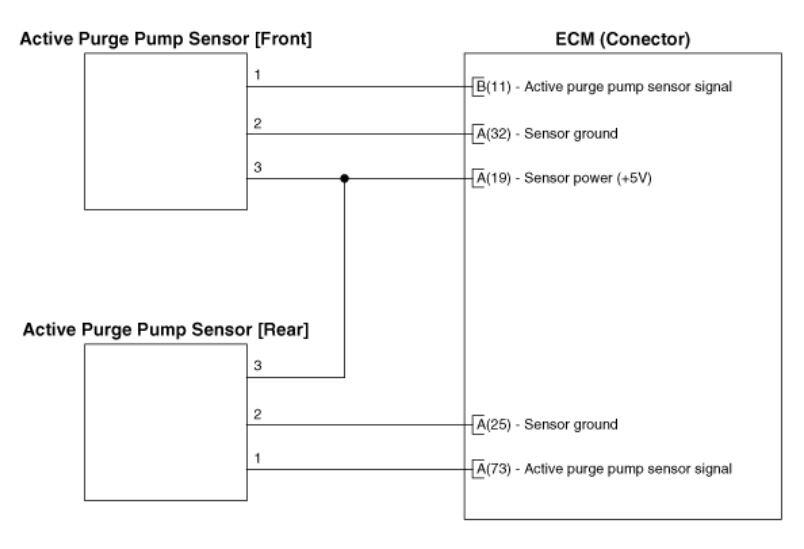

Home >> Hyundai >> 2021 >> Santa Fe Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Active Purge Pump Sensor >> Schematic Diagrams >> Circuit Diagram >> Notes
