Tailgate Open Switch

WARNING: This page is about a different car, the 2022 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim.

    (Refer to Body - "LIFTGATE TRIM ")

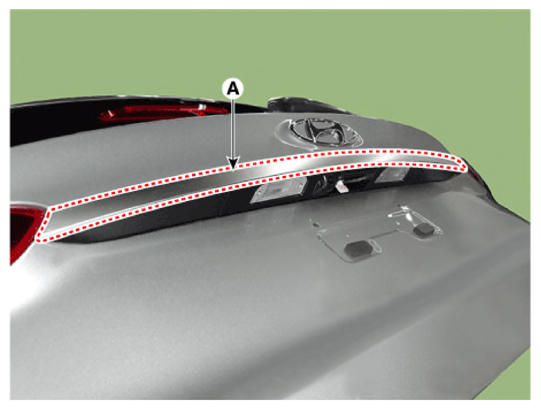

  3. Remove the tailgate garnish (A) after loosening the mounting nuts.
    G14539753Courtesy of HYUNDAI MOTOR AMERICA

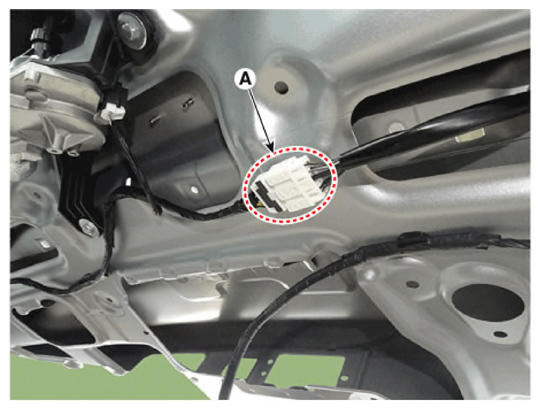

  4. Disconnect the tailgate switch connector (A).
    G14539754Courtesy of HYUNDAI MOTOR AMERICA

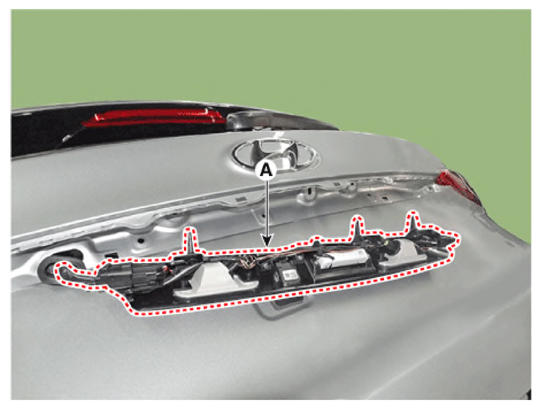

  5. Remove the tailgate switch assembly (A).
    G14539755Courtesy of HYUNDAI MOTOR AMERICA

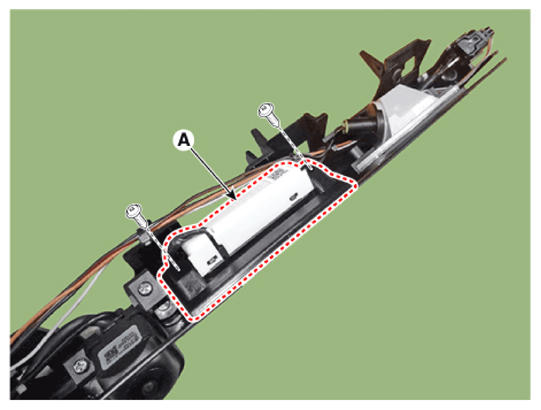

  6. Remove the tailgate switch (A) after loosening the screw.
G14539756Courtesy of HYUNDAI MOTOR AMERICA
