Terminal Function: Abs/ESC

G14535401Courtesy of HYUNDAI MOTOR AMERICA
PIN No Description Current Resistance
1 Pump motor supply voltage 60 A 10 mΩ
2 - - -
3 - - -
4 C-CAN High 100 mA 250 mΩ
5 C-CAN Low 100 mA 250 mΩ
6 - - -
7 P-CAN Low 100 mA 250 MΩ
8 P-CAN High 100 mA 250 MΩ
9 Wheel speed sensor supply voltage (Left rear) 100 mA 250 MΩ
10 Wheel speed sensor supply voltage (Right rear) 100 mA 250 MΩ
11 Wheel speed sensor supply voltage (Right front) 100 mA 250 MΩ
12 Wheel speed sensor supply voltage (Left front) 100 mA 250 MΩ
13 Recycle pump ground 40 A 10 MΩ
14 - - -
15 Clutch stroke sensor signal 1.2 mA 250 MΩ
16 DBC switch signal 1.2 mA 250 MΩ
17 VDC OFF switch signal 1.2 mA 250 MΩ
18 - - -
19 Parking brake switch signal 1.2 mA 250 MΩ
20 - - -
21 Wheel speed sensor ground (Left rear) 40 mA 250 MΩ
22 Wheel speed sensor ground (Right rear) 40 mA 250 MΩ
23 Wheel speed sensor ground (Right front) 40 mA 250 MΩ
24 Wheel speed sensor ground (Left front) 40 mA 250 MΩ
25 Solenoid valve voltage 30 A 10 MΩ
26 Brake pressure sensor ground 60 mA 10 MΩ
27 Brake pressure sensor signal 40 mA 250 MΩ
28 Brake pressure sensor power 60 mA 10 MΩ
29 - - -
30 Brake lamp switch 1.2 mA 250 MΩ
31 - - -
32 IGN 1 10 mA 50 MΩ
33 - - -
34 Electronic vacuum pump output 1 mA 50 MΩ
35 - - -
36 Electronic vacuum pump motor monitor 100 mA 250 MΩ
37 Wheel speed sensor output 50 mA 250 MΩ
38 Solenoid valve ground 30 A 10 MΩ

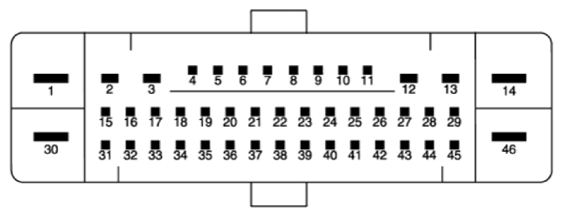

G14535402Courtesy of HYUNDAI MOTOR AMERICA
PIN No Description Current Resistance
1 Pump motor supply voltage 60 A 10 MΩ
2 Right rear EPB motor power 15 A 10 MΩ
3 Right rear EPB motor ground 15 A 10 MΩ
4 Brake pressure sensor ground 60 mA 10 MΩ
5 - - -
6 Electronic parking brake signal 1 [Connect] 20 mA 250 MΩ
7 Electronic parking brake signal 2 [Connect] 20 mA 250 MΩ
8 Electronic parking brake signal 3 [Release] 20 mA 250 MΩ
9 Electronic parking brake signal 4 [Release] 20 mA 250 MΩ
10 Brake pressure sensor signal 40 mA 250 MΩ
11 Brake pressure sensor power 60 mA 10 MΩ
12 Left rear EPB motor ground 15 A 10 MΩ
13 Left rear EPB motor power 15 A 10 MΩ
14 Solenoid valve ground 40 A 10 MΩ
15 DBC switch signal 1.2 mA 250 MΩ
16 - - -
17 VDC OFF switch signal 1.2 mA 250 MΩ
18 - - -
19 C-CAN High 100 mA 250 MΩ
20 C-CAN Low 100 mA 250 MΩ
21 -
22 P-CAN LOW 100 mA 250 MΩ
23 P-CAN High 100 mA 250 MΩ
24 - - -
25 Wheel speed sensor supply voltage (Left rear) 150 mA 250 MΩ
26 Wheel speed sensor supply voltage (Right rear) 150 mA 250 MΩ
27 Wheel speed sensor supply voltage (Right front) 150 mA 250 MΩ
28 Wheel speed sensor supply voltage (Left front) 150 mA 250 MΩ
29 Electronic vacuum pump motor monitor 100 mA 250 MΩ
30 Solenoid valve voltage 40 A 10 MΩ
31 - - -
32 - - -
33 - - -
34 Auto holding ON/OFF switch signal 1.2 mA 250 MΩ
35 Brake lamp switch 1.2 mA 250 MΩ
36 Electronic vacuum pump output 1 A 60 MΩ
37 IGN 1 10 mA 50 MΩ
38 - - -
39 - - -
40 - - -
41 Wheel speed sensor ground (Left rear) 40 mA 250 MΩ
42 Wheel speed sensor ground (Right rear) 40 mA 250 MΩ
43 Wheel speed sensor ground (Right front) 40 mA 250 MΩ
44 Wheel speed sensor ground (Left front) 40 mA 250 MΩ
45 Wheel speed sensor output (Right front) 50 mA 250 MΩ
46 Recycle pump ground 60 A 10 MΩ
