Components And Components Location: Components: [2WD]

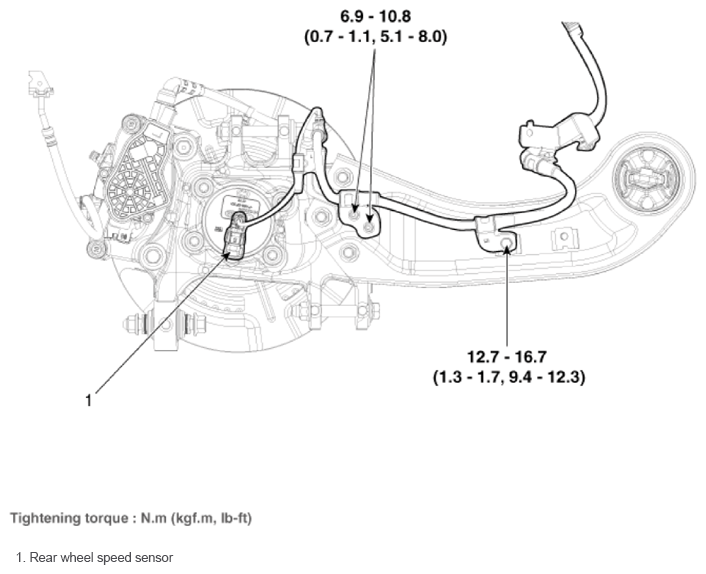

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification (2WD)

G14535437

Courtesy of HYUNDAI MOTOR AMERICA
