Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

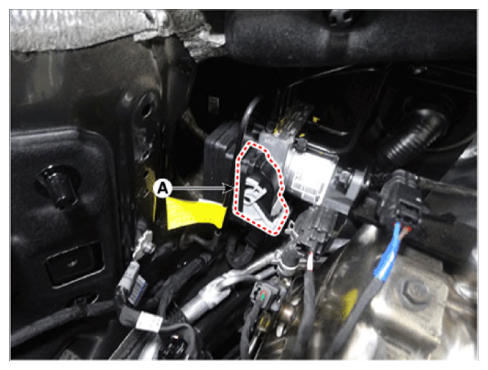

- Pull up the lock of the HECU connector and then disconnect the connector (A).

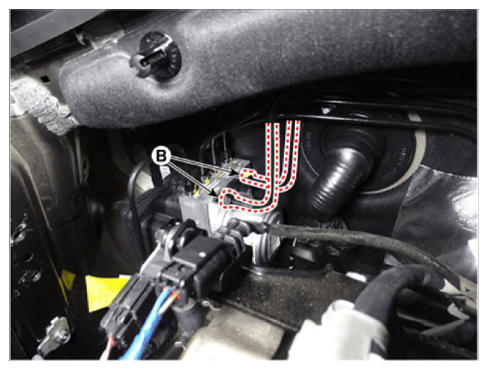

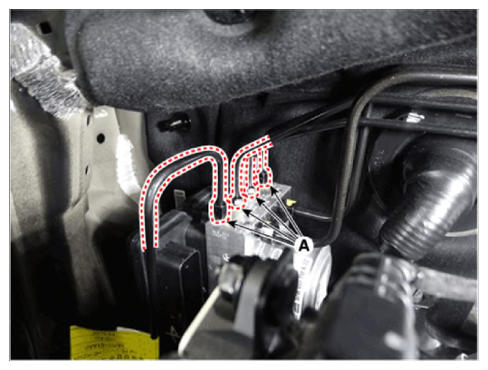

- Remove the brake tube (A, B) after loosening the brake tube flare nuts.
Tightening torque:
13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)
Tightening torque:
18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

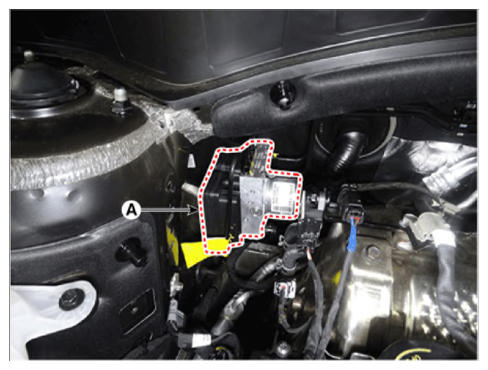

- Remove the ESP control module (A) after loosening the mounting nuts.
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

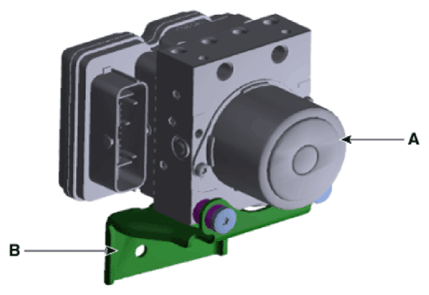

- Separate the bracket (B) after remove the mounting bolt from the HECU (A).
