Repair Procedures: Replacement

Open the cover and loosen the front seat mounting bolts.

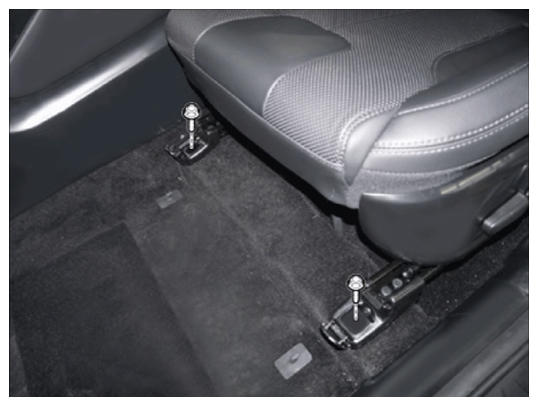

[Front]

Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

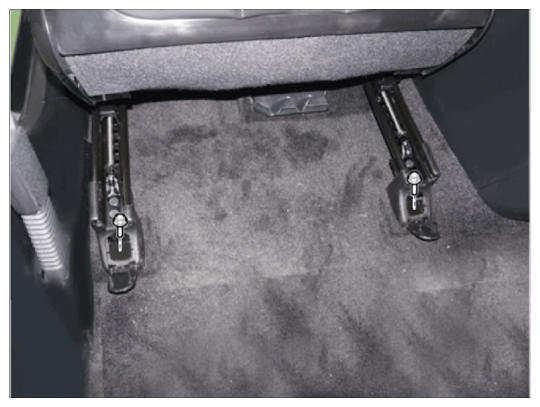

[Rear]

Courtesy of HYUNDAI MOTOR AMERICA
Separate the main connector (A), side airbag connector (B), front seat belt buckle connector (C) and OCS connector (D).

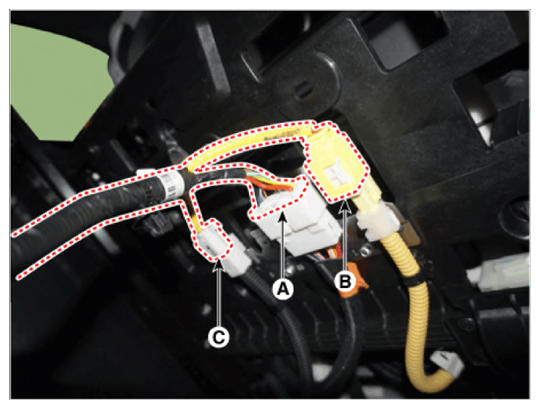

[Driver's]

Courtesy of HYUNDAI MOTOR AMERICA

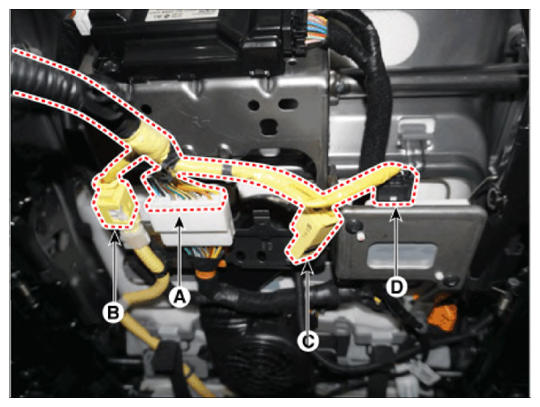

[Passenger's]

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information

The installation procedures of seat mounting bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- Check the seat for smooth movement.
- For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
