Smart Key Status Check

  1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.

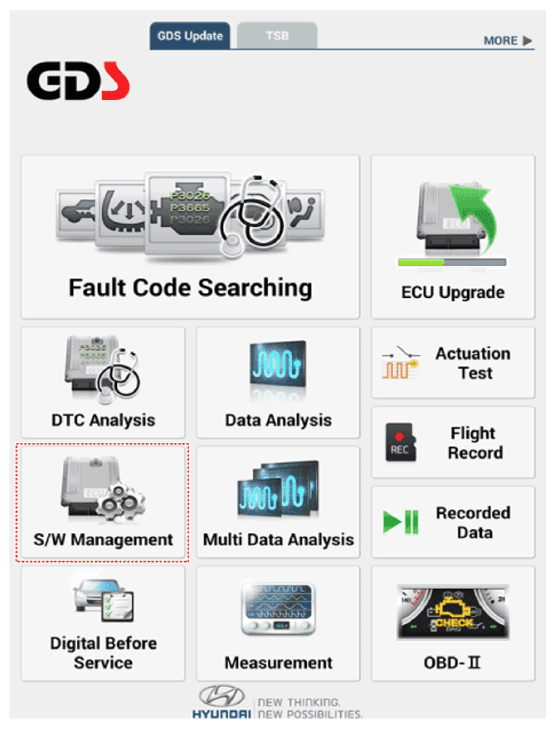

  2. Select the 'S/W Management' and 'Car model'.
    G14539735Courtesy of HYUNDAI MOTOR AMERICA

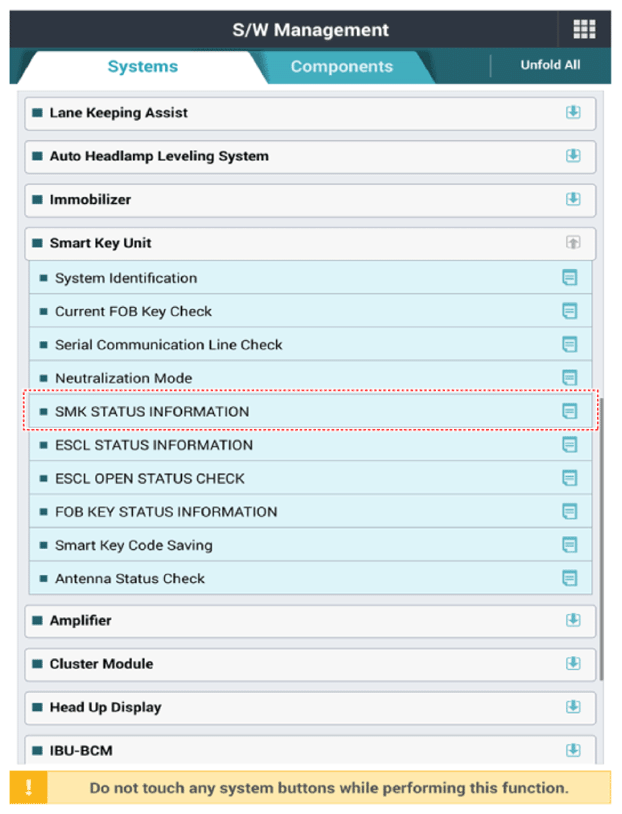

  3. Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.
G14539736Courtesy of HYUNDAI MOTOR AMERICA

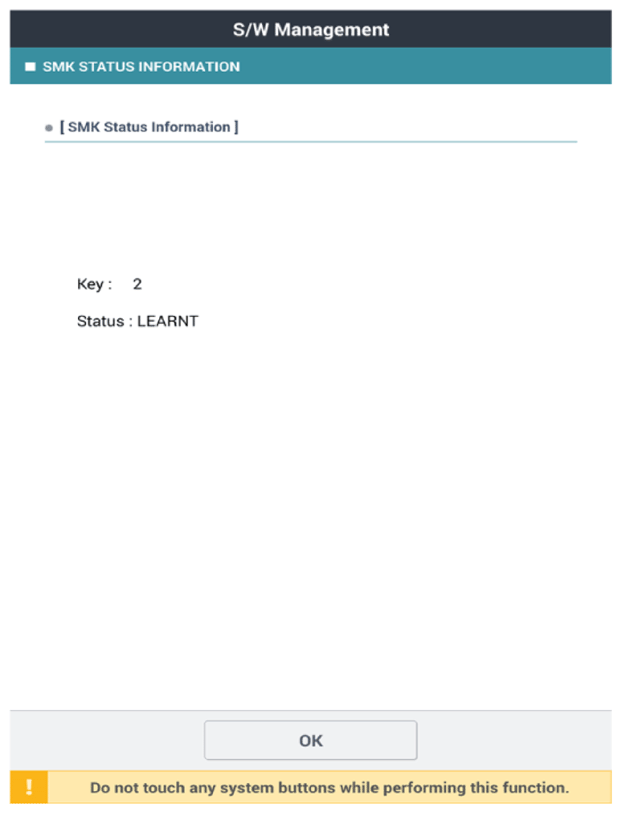

G14539737Courtesy of HYUNDAI MOTOR AMERICA
