Removal and Installation
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Remove the upper oil pan.
(Refer to "OIL PAN ")

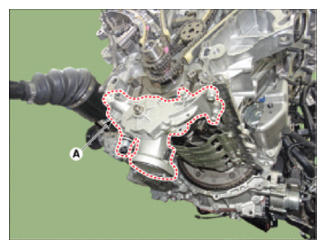

- Remove the oil pump (A).
Tightening torque:
20.6 - 32.4 N.m (2.1 - 2.3 kgf.m, 15.2 - 23.9 lb.ft)
- Install in the reverse order of removal.
