Repair Procedures: Replacement
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")

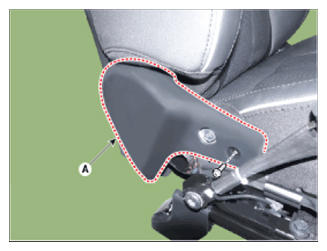

- Loosen the mounting screws and remove the front seat shield inner cover (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
