Repair Procedures: Replacement

NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat assembly.

    (Refer to "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat shield outer cover.

    (Refer to "FRONT SEAT OUTER SHIELD COVER ")

  3. Remove the front seat shield inner cover.

    (Refer to "FRONT SEAT INNER SHIELD COVER ")

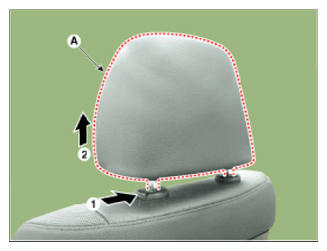

  4. Push the lock pin, remove the front seat headrest (A).
    G14426966Courtesy of HYUNDAI MOTOR AMERICA

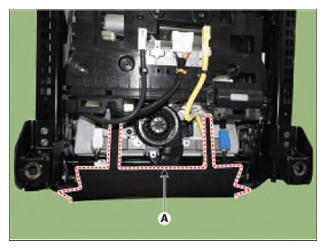

  5. Remove the front seat lower protector (A).
    G14426967Courtesy of HYUNDAI MOTOR AMERICA

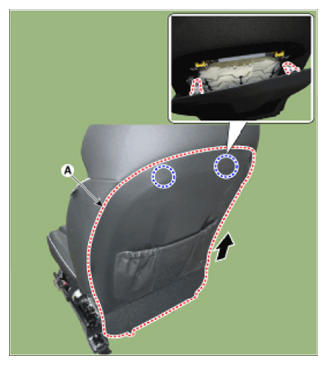

  6. Remove the front seat back board (A).
    CAUTION:
    • Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
    • Be careful not to damage the fixing clips.
    G14426968Courtesy of HYUNDAI MOTOR AMERICA

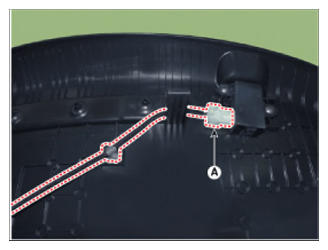

  7. Separate the front seat USB connector (A).
    G14426969Courtesy of HYUNDAI MOTOR AMERICA

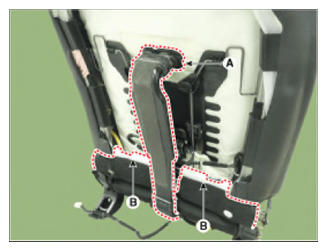

  8. Remove the front seat back duct (A) and lower protector (B).
    G14426970Courtesy of HYUNDAI MOTOR AMERICA

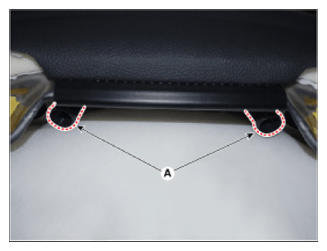

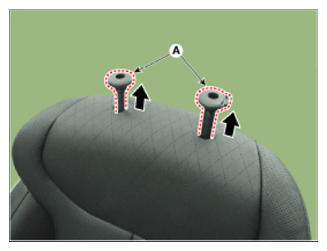

  9. Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.
    G14426971Courtesy of HYUNDAI MOTOR AMERICA
    G14426972Courtesy of HYUNDAI MOTOR AMERICA

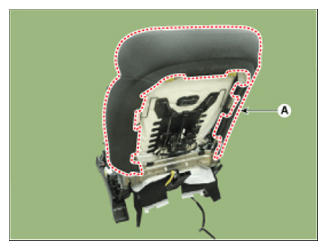

  10. Remove the protector (A) from the front seat back frame.
    G14426973Courtesy of HYUNDAI MOTOR AMERICA

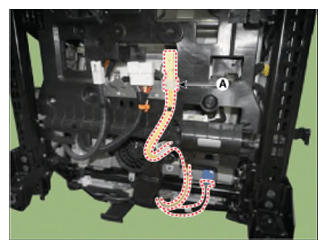

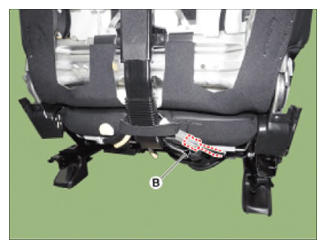

  11. Separate the front seat airbag wiring (A) and seat back heater connector (B) and remove the front seat back cover.
    G14426974Courtesy of HYUNDAI MOTOR AMERICA
    G14426975Courtesy of HYUNDAI MOTOR AMERICA

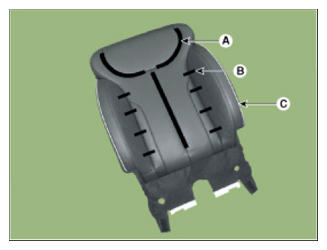

  12. Remove the Velcro tape (A) and hog-ring clips (B) inside the front seat back cover and remove the seat back cover (C).
    G14426976Courtesy of HYUNDAI MOTOR AMERICA
  13. To install, reverse removal procedure.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips (or pin-type retainers).

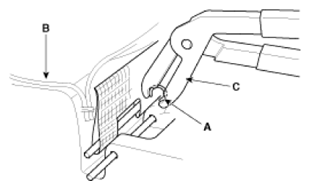

    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
    G14426977Courtesy of HYUNDAI MOTOR AMERICA
