Repair Procedures: Inspection
IMPORTANT:
- Transfer oil should be inspected and refilled every 60, 000 km (40, 000 mile)/4 year.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

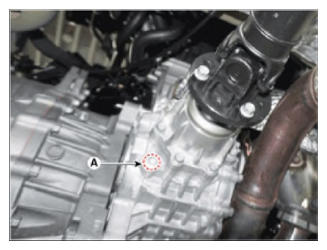

- Loosen the oil filler plug (A).
- Check the oil level.IMPORTANT:
- Oil level must be up to fill the hole, if not, add oil until it runs over.
- Install the oil filler plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
- Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
