Components & Components Location: Components: 2WD

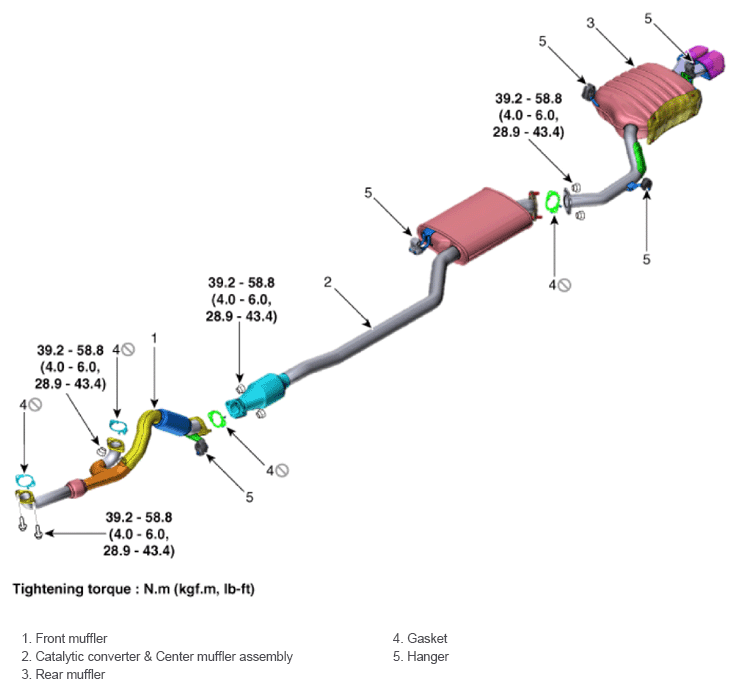

Fig 1: Muffler And Catalytic Converter Components Location With Torque Specifications (2WD)

G14423526

Courtesy of HYUNDAI MOTOR AMERICA
