Home >> Hyundai >> 2021 >> Palisade Limited, FWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Tires/Wheels/Alignment >> Tire >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove valve core and deflate the tire.
  2. Remove the side of the tire bead area from the wheel using tire changing machine.

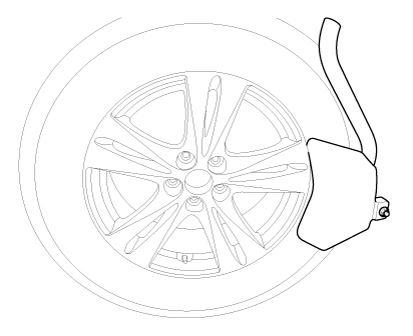

    G14426637Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
    • Avoid tire/tool contact with the valve on dismount.
    • Dismount should end near the valve.
  3. Rotate the wheel clockwise.

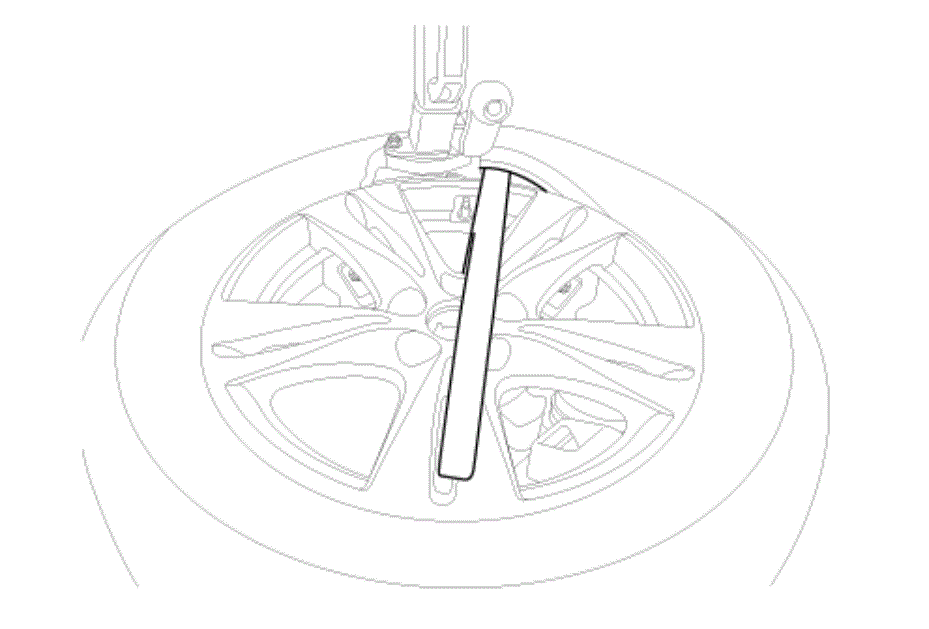

    G00606095Courtesy of HYUNDAI MOTOR AMERICA

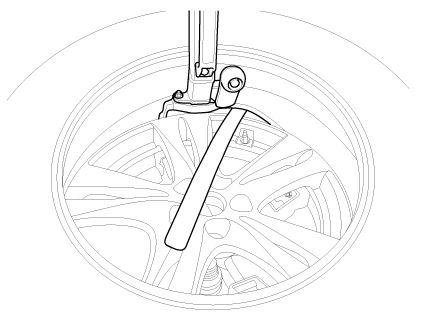

    G14426639Courtesy of HYUNDAI MOTOR AMERICA
