Repair Procedures: Removal

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim assembly.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

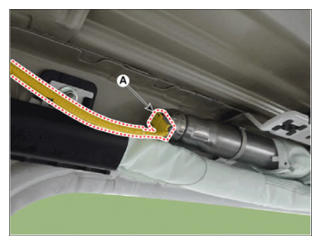

  3. Disconnect the curtain airbag connector (A).
    G15478117Courtesy of HYUNDAI MOTOR AMERICA

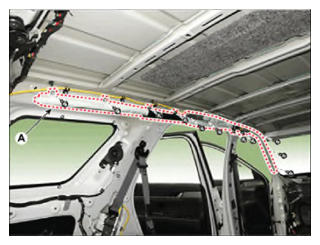

  4. After loosening the mounting bolts & nuts remove the curtain airbag.
    G15478118Courtesy of HYUNDAI MOTOR AMERICA
