Home >> Hyundai >> 2021 >> Palisade Limited, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (6 Of 9) >> DTC P062D-00: Fuel Injector Driver Circuit Performance Bank 1 >> Troubleshooting >> Diagnostic Flowchart

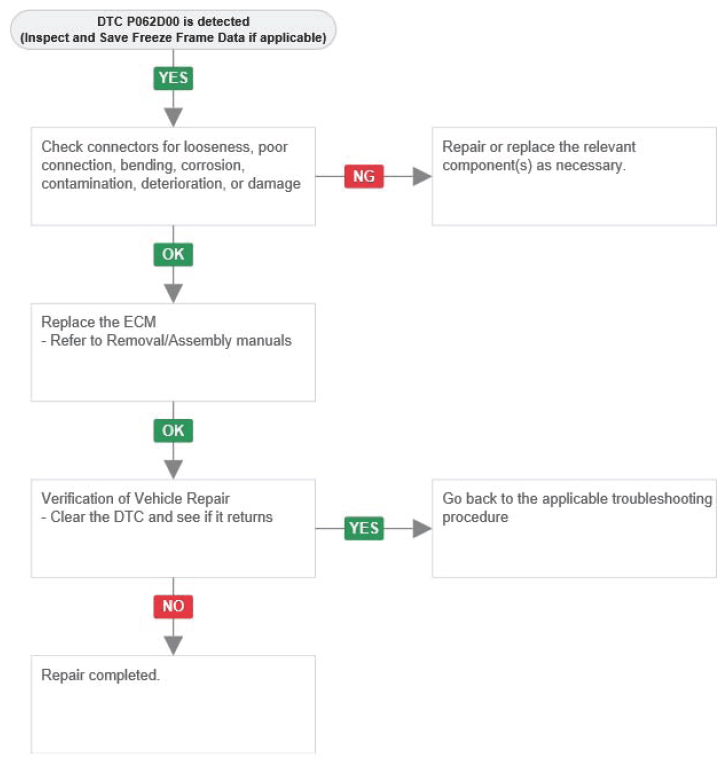

Diagnostic Flowchart

G14460809Courtesy of HYUNDAI MOTOR AMERICA
