Non - M/T

How to use:

  1. Engine Auto-Stop: D-range + brake pedal is pressed.
    G14423936Courtesy of HYUNDAI MOTOR AMERICA

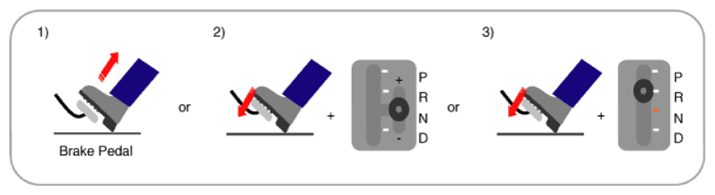

  2. Engine Auto-Start
    1. Brake pedal is released.
    2. Brake pedal is pressed + Manual range (Sports mode)
    3. Brake pedal is pressed + R range
    G14423937Courtesy of HYUNDAI MOTOR AMERICA

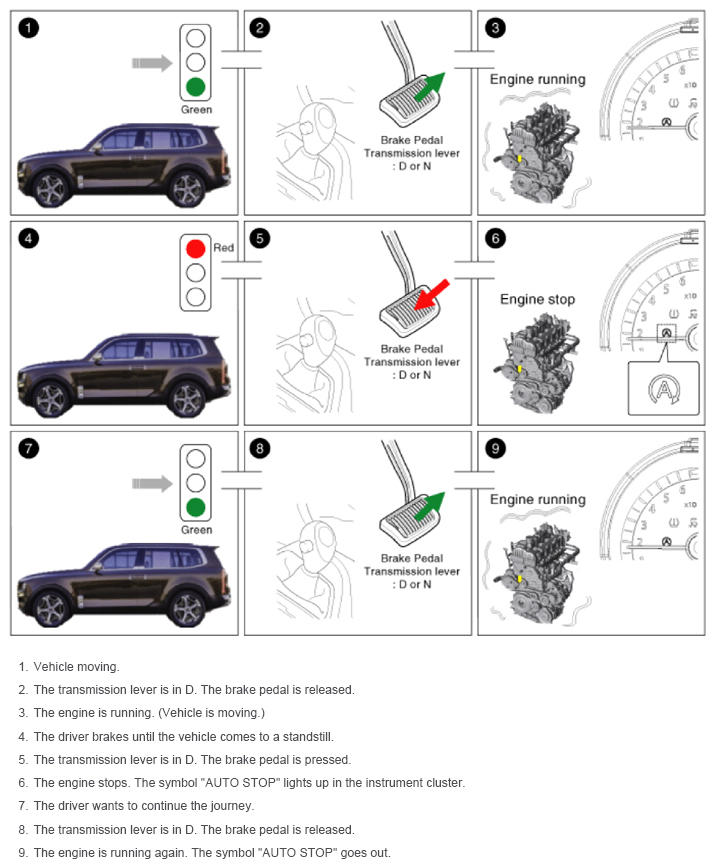

    G14423938Courtesy of HYUNDAI MOTOR AMERICA
