Repair Procedures: Disassembly

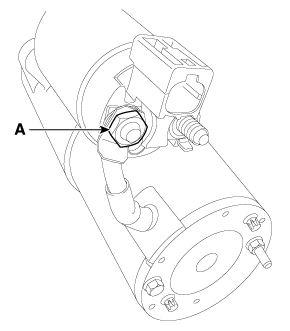

  1. Disconnect the M-terminal (A) on the starter solenoid assembly.
    G14423638Courtesy of HYUNDAI MOTOR AMERICA

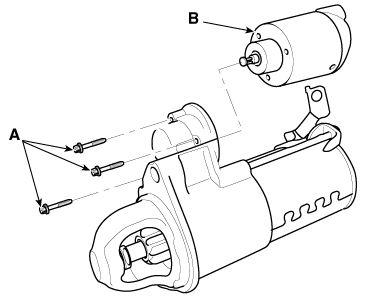

  2. After loosening the screws (A), detach the starter solenoid assembly (B).
    G14423639Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the through bolts (A).
    G14423640Courtesy of HYUNDAI MOTOR AMERICA

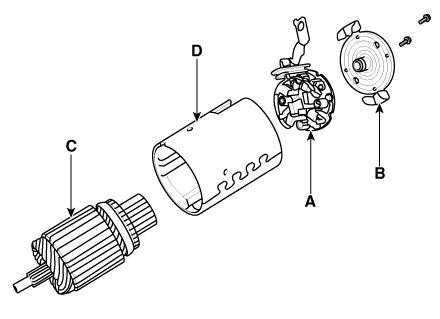

  4. Remove the brush holder assembly (A), rear bracket assembly (B) after loosening the mounting screws.
  5. Remove the armature assembly (C) and york assembly (D).
    G14423641Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the shield (A).
    G14423642Courtesy of HYUNDAI MOTOR AMERICA

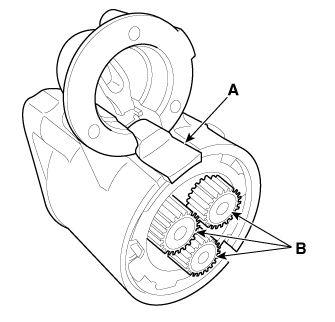

  7. Remove the lever packing (A) and the planet gear (B).
    G14423643Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the clutch set assembly (A) and lever (B).
    G14423644Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Beware of the direction of the lever (A).
      G14423645Courtesy of HYUNDAI MOTOR AMERICA
  9. Press the stopper (A) using a socket (B).
    G14423646Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the stop ring (A) using the stop ring pliers (B).
    G14423647Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).
    G14423648Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).
      G14423649Courtesy of HYUNDAI MOTOR AMERICA
