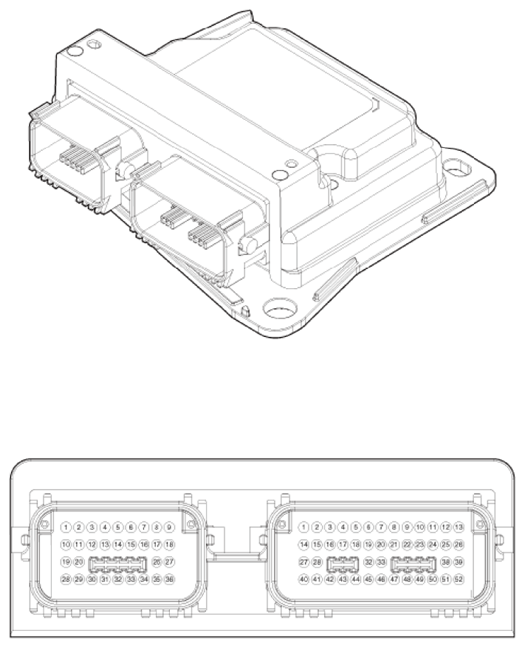

| 1 |
Driver airbag 2nd stage (High) |
- |
| 2 |
Driver airbag 2nd stage (Low) |
- |
| 3 |
Passenger airbag 2nd stage (Low) |
- |
| 4 |
Passenger airbag 2nd stage (High) |
Rear left side airbag (Low) |
| 5 |
- |
Rear left side airbag (High) |
| 6 |
- |
Rear right side airbag (High) |
| 7 |
Passenger airbag Active air vent (Low) |
Rear right side airbag (Low) |
| 8 |
Passenger airbag Active air vent (High) |
Rear left pretensioner (Low) |
| 9 |
- |
Rear left pretensioner (High) |
| 10 |
B+ |
Rear right pretensioner (High) |
| 11 |
Crash output |
Rear right pretensioner (Low) |
| 12 |
Passenger airbag 1st stage (Low) |
- |
| 13 |
Passenger airbag 1st stage (High) |
- |
| 14 |
Driver Knee airbag (High) |
- |
| 15 |
Driver Knee airbag (Low) |
- |
| 16 |
Telltale lamp |
- |
| 17 |
- |
Passenger curtain airbag (Low) |
| 18 |
- |
Passenger curtain airbag (High) |
| 19 |
Driver airbag 1st stage - (High) |
Driver curtain airbag (High) |
| 20 |
Driver airbag 1st stage (Low) |
Driver curtain airbag (Low) |
| 21 |
- |
Passenger side airbag (Low) |
| 22 |
- |
Passenger side airbag (High) |
| 23 |
- |
Driver side airbag (High) |
| 24 |
- |
Driver side airbag (Low) |
| 25 |
- |
- |
| 26 |
C-CAN (Low) |
- |
| 27 |
C-CAN (High) |
Driver seat belt pretensioner (Low) |
| 28 |
IGN 1 |
Driver seat belt pretensioner (High) |
| 29 |
Front driver impact sensor LH - (High) |
- |
| 30 |
Front impact sensor LH - (Low) |
- |
| 31 |
Front impact sensor RH - (Low) |
- |
| 32 |
Front impact sensor RH - (High) |
Passenger seat belt pretensioner (High) |
| 33 |
- |
Passenger seat belt pretensioner (Low) |
| 34 |
- |
- |
| 35 |
P-CAN (Low) |
- |
| 36 |
P-CAN (High)) |
- |
| 37 |
|
- |
| 38 |
- |
| 39 |
- |
| 40 |
Ground |
| 41 |
Driver side rear impact sensor (Low) |
| 42 |
Driver side rear impact sensor (High) |
| 43 |
Driver pressure side impact sensor (High) |
| 44 |
Driver pressure side impact sensor (Low) |
| 45 |
Passenger pressure side impact sensor (Low) |
| 46 |
Passenger pressure side impact sensor (High) |
| 47 |
Driver side impact sensor (High) |
| 48 |
Driver side impact sensor (Low) |
| 49 |
Passenger side impact sensor (Low) |
| 50 |
Passenger side impact sensor (High) |
| 51 |
Passenger side rear impact sensor (High) |
| 52 |
Passenger side rear impact sensor (Low) |
